Introduction to Stainless Steel
Stainless steel is an iron and chromium alloy containing 10 to 30 percent chromium. it have excellent corrosion resistance, high strength and attractive appearance.
Information on Stainless Steel
Machining | Image | Type | Property | Tolerance | Application |
---|---|---|---|---|---|
CNC Machining Metal | ![]() | Nitronic 60(218 SS) Stainless Steel 15-5 Stainless Steel 17-4 Stainless Steel 18-8 Stainless Steel 304 Stainless Steel 316/316L Stainless Steel 416 Stainless Steel 410 Stainless Steel 420 Stainless Steel 440C | High corrosion resistance Good strength Non-reactive Tough to machine | min +/-0.02mm | Food processing equipment Medical devices industrial equipment Jewelry |
Sheet Metal Fabrication | ![]() | Stainless Steel 301, Stainless Steel 304, Stainless Steel 316/316L | High corrosion resistance Good strength and durability non-reactive Resistant to staining | min +/-0.1mm | Food processing equipment Medical equipment Architectural panels Kitchen appliances |
Available Stainless Steel Properties
Stainless Type | Yield Strength(MPa) | Elongation at Break (%) | Hardness (Brinell) | Density (g/cm³) | Maximum Temp (°C) |
---|---|---|---|---|---|
Nitronic 60 (218 SS) | 450 | 35 | 280 | 8.0 | 982 |
Stainless Steel 15-5 | 760-1035a | 10-16 | 277-388 | 7.8 | 482 |
Stainless Steel 17-4 | 1035-1380 | 5-15 | 277-444 | 7.8 | 482 |
Stainless Steel 18-8 | 520 | 30 | 180-200 | 8.0 | 870 |
Stainless Steel 304 | 215 | 70 | 123-225 | 8.0 | 870 |
SS 316/316L | 290 | 30-50 | 149-220 | 8.0 | 870 |
Stainless Steel 416 | 650 | 25 | 170-270 | 7.8 | 760 |
Stainless Steel 410 | 450 | 25 | 160-280 | 7.8 | 815 |
Stainless Steel 420 | 650 | 15 | 200-340 | 7.8 | 760 |
Stainless Steel 440C | 1900-2100 | 2 | 700-800 | 7.8 | 760 |
The values above are typical averages and could vary based on specific type.
Available surface finishing for Stainless Steel part
Image | Capabilities | Description | Applicable to | Texture | Price |
---|---|---|---|---|---|
![]() | As-machined | As machined means the parts without any surface treatment after they get off the machines. | All materials | n/a | None |
![]() | Sanding and Polishing | Polishing is a surface finishing process to create a smooth surface. With mechanical, chemical or electrochemical methods, polishing will reduce the surface roughness of the parts to get a bright and reflective surface. | All materials | Smooth, glossy finish | $$$$ |
![]() | Bead Blasting | Bead blasting use high speed jetted sand and iron shots to hit the surface of the workpiece. it will change the surface of part and improve the mechanical properties of part. | Aluminum, Stainless Steel, Steel, Brass, Copper | n/a | $ |
![]() | Powder Coating | Powder coating is a surface finishing process that adhere dry powder on the surface of a meatal part. | All metal materials | Glossy or Sand | $$$ |
![]() | Black Oxide | Black oxidation is a kind of chemical surface treatment. it is used for surface coating commonly because it can eliminate reflections. | Steel, Stainless Steel | Smooth, matte | $$$ |
![]() | Electroplating | Electroplating is the process of depositing a thin layer of metal matieral on metal substrate using electric current. | Aluminum, steel, stainless steel | Smooth, glossy finish | $$$ |
![]() | Brushing | The brushing finish process is a surface treatment method that uses abrasive material to form lines on the surface of metal parts to achieve distinctive textured appearance. | ABS, Aluminum, Brass, Stainless Steel, Steel | n/a | $$ |
![]() | Marking | Marking is available in differnt types and different methods. | All materials | n/a | $$ |
Related Blog
Surface Finishing on Plastic Prototype in Automotive Lighting
In automotive lighting design, surface finishes matter. they contribute significantly to the vehicle’s aesthetics. achieving the perfect surface finishes for the lighting prototypes is critical for a successful project. In…
What is Reaming – How to Use
Reaming is a critical finishing process in CNC machining that guarantees optimal diameter accuracy, dimensional tolerance, and superior surface finish for the holes in your workpiece. But what exactly is reaming, and…

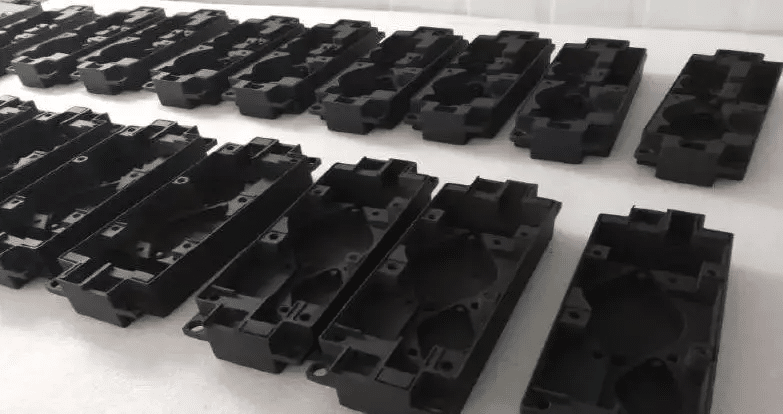

Low Volume Injection Molding – Production, Tooling, Design Guideline
